JDE Electric Pallet Truck 1.5 ton PNXEPT-15 – JDE

JDE Electric Pallet Truck 1.5 ton JDEEPT-15

Model: JDEEPT-15

Electric Pallet Truck JDEEPT-15 with 1.5 ton capacity and 115 mm lift height. View specifications and request a quote from JDE.

Capacity
1.5 ton
Lift height
115 mm
Power type
Fully electric
Request a Quote Call WhatsApp

Full specifications

General
BrandJDE
Model No.JDEEPT-15
TypeElectric Pallet Truck
Operate TypeWalkie Type
Axle Loading, Laden Driving/Load626/1000
Axle Loading, Unladen Driving/Load99/27
Max. Grade Ability (Load/Unload)6/16 %
Capacity & lift

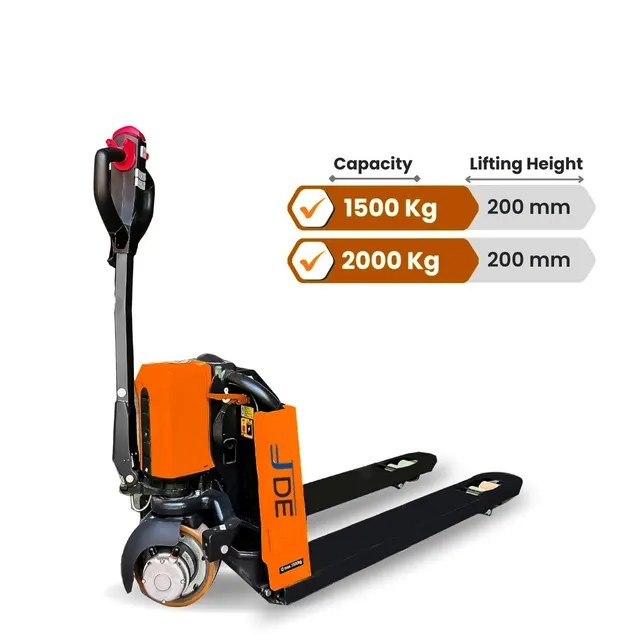

Rated Capacity1500 kg
Load Center Distance600 mm
Lift Height115 mm
Dimensions
Load Distance, Center Of Drive Axle to Fork947 mm
Min. Height80 mm

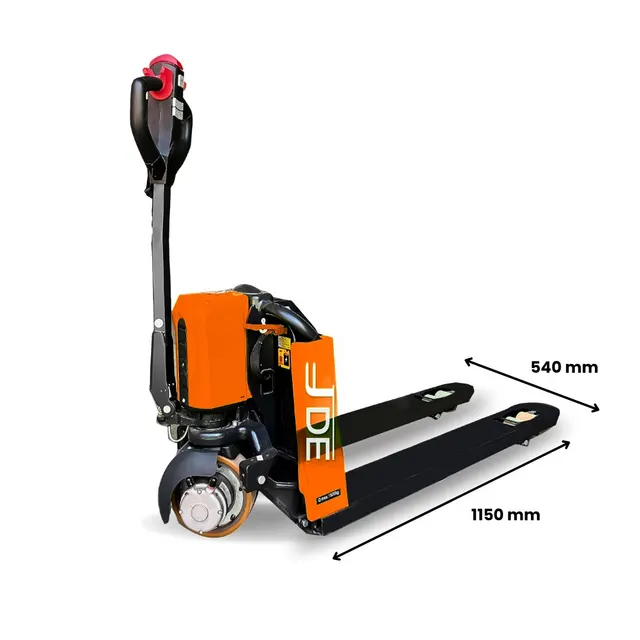

Total Width540/685 mm
Handle Height During Operation, Max./Min.700/1160 mm
Total Body Length380 mm
Ground Clearance33 mm
Total Length1530 mm
Fork Dimensions47/160/1150 mm
Turning Radius1330 mm
Wheels & brakes
Wheel Base1185 mm
Wheel TypePolyurethane(PU)
Driving WheelØ210x70 mm
Load WheelØ70 x 80 mm
Driving Wheel Wheelbase430 mm
Load Wheel Wheelbase525 mm
Brake TypeElectromagnetic
Power & battery
Power TypeLithium Battery
Drive Control ModeDC Speed Control
Traction Motor0.65 kW
Lift Motor0.5 kW
Battery Volts/Ampere24/20 V/Ah
Performance
Traction Speed (Load/Unload)4.6/4.8 Km/h
Lifting Speed (Load/Unload)20/25 mm/s
Lowering Speed (Load/Unload)50/40 mm/s
Noise70 Db
Weight
Battery Weight4.6 kg
Weight (With Battery)126 kg

Description

JDE Electric Pallet Truck 1.5 ton JDEEPT-15, you get professional operation capabilities and high-powered performance.

Featuring a lithium battery and a walkie operate type, it offers a rated capacity of 1500 kg and a load center distance of 600 mm.

Its self-weight is 126 kg, with an axle loading of 626/1000 when laden driving/load, and 99/27 when unladen driving/load.

It also comes with polyurethane wheels, an Ø210x70 mm driving wheel, and an Ø70x80 mm load wheel.

With its 115 mm lift height and 33 mm ground clearance, the JDEEPT-15 is ideal for heavy-duty jobs.
