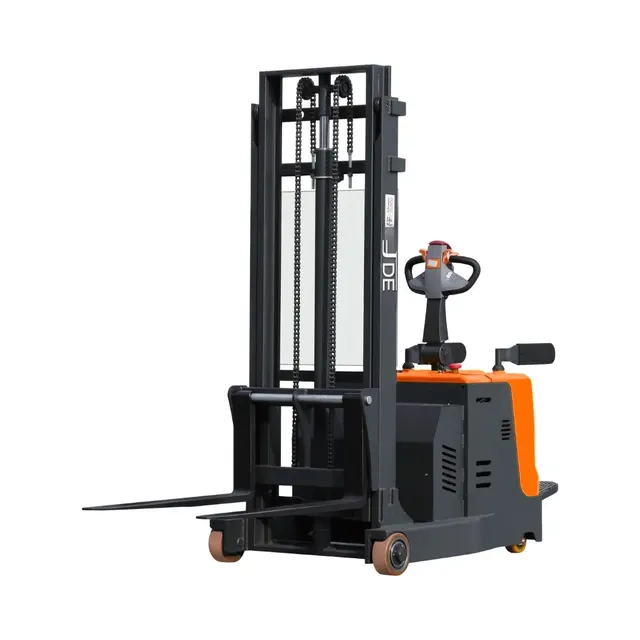

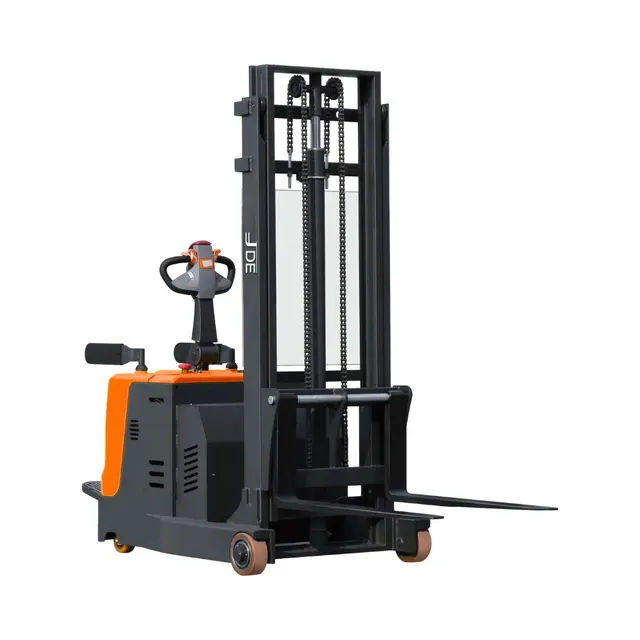

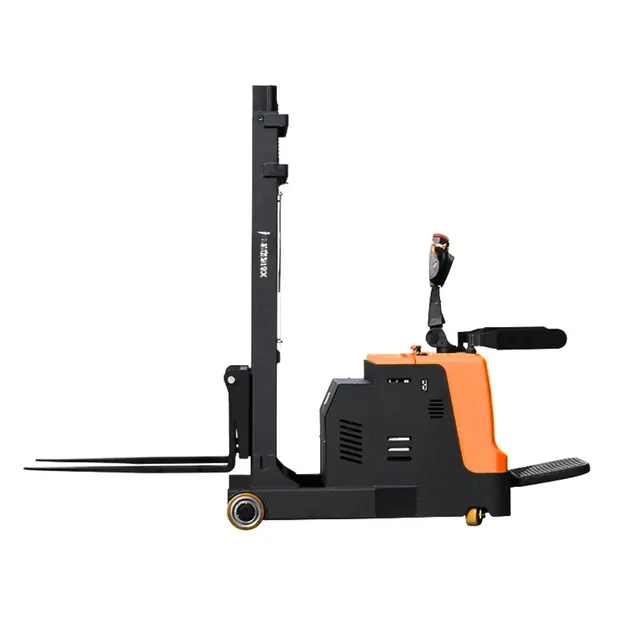

JDE Electric Counter Balanced Stacker-Rider 1500 kg Capacity, 4.5 m Lifting Height PNXCBS-1545 – JDE

JDE Electric Counter Balanced Stacker-Rider 1000 kg Capacity, 1.6 m Lifting Height JDECBS-1016

Model: JDECBS-1016

Electric Counter Balanced Stacker-Rider JDECBS-1016 with 1 ton capacity and 1.6 m lift height. View specifications and request a quote from JDE.

Capacity
1 ton
Lift height
1.6 m
Power type
Fully electric
Operation type
Counterbalance
Request a Quote Call WhatsApp

Full specifications

General
BrandJDE
TypeElectric Counter Balanced Stacker-Rider
Model No.JDECBS-1016
Mast TypeSingle
Operation TypeStand On
Capacity & lift
Load Capacity1000 kg
Lifting Height1600 mm
Load Center500 mm
Dimensions
Overall Height, Mast Lowered2030 mm
Overall Height, Mast Extended2030 mm
Min. Height of Fork< 65 mm
Overall Length2580 mm
Body Length1580 mm
Overall Width940 mm
Fork Size35/100/1070 mm
Fork Outer Width220 - 680 mm
Aisle Width 1000 x 1200 Pallets2934 mm
Aisle Width 800 x 1200 Pallets2902 mm
Turning Radius1450 mm
Wheels & brakes
Wheelbase1100 mm
Ground Clearance at Center of Wheelbase40 mm
Wheel TypePolyurethane
Wheel Size, DriveØ 230 x 75 mm
Wheel Size, LoadØ 180 x 75 mm
Wheel Size, BalanceØ 115 x 50 mm
Steering TypeElectric Power Steering
Brake TypeElectromagnetic Brake
Power & battery
Driving Motor24 V / 1.5 kW
Lifting Motor24 V / 2.2 kW
Battery Qty1 Pc
Battery24 V / 210 Ah
Charger24 V / 30 Ah
Performance
Driving Speed (Load/Unload)4.5 / 5 km/h
Lifting Speed (Load/Unload)100 / 135 mm/s
Lowering Speed (Load/Unload)100 / 110 mm/s
Max. Climbing Ability (Load/Unload)5 / 7%
Weight
Weight1110 kg
