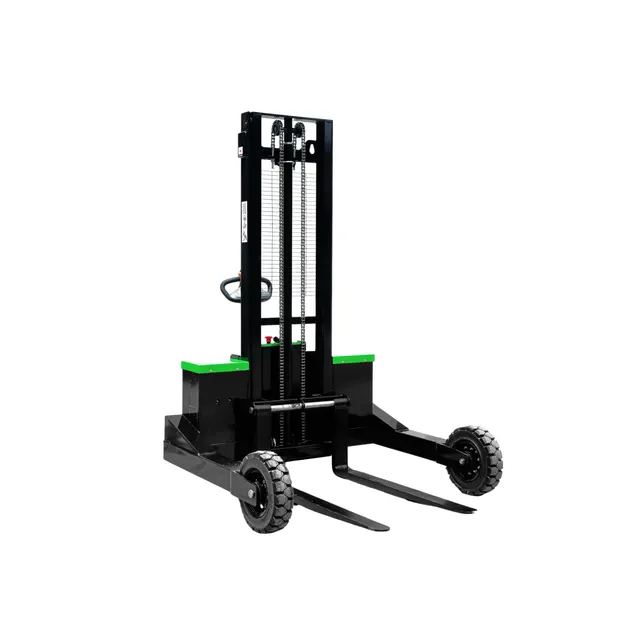

JDE Rough Terrain Electric Stacker 1.5 ton Capacity, 3.5 m Lifting Height JDERTES-1535

Model: JDERTES-1535

Rough Terrain Electric Stacker JDERTES-1535 with 1.5 ton capacity and 3.5 m lift height. View specifications and request a quote from JDE.

Capacity
1.5 ton
Lift height
3.5 m
Power type
Semi-electric
Operation type
Rough terrain
Request a Quote Call WhatsApp

Full specifications

General
BrandJDE
TypeRough Terrain Electric Stacker
Model No.JDERTES-1535
Drive ModeElectric
Operation MethodPedestrian
Braking MethodElectromagnetic
Capacity & lift
Load Capacity1500 kg
Load Center600 mm
Free Lifting Height80 mm
Lifting Height3500 mm
Dimensions
Front Overhang440 mm
Overall Height, Mast Lowered2400 mm
Overall Height, Mast Extended4200 mm
Min. Height of Fork80 mm
Handle Height Above the Ground (Min.)1000 mm
Handle Height Above the Ground (Max.)1324 mm
Overall Length1972 mm
Fork Face Back Length772 mm
Overall Width1600 mm
Fork Dimension40 / 100 / 1200 s/e/i
Fork Outer Width680 mm
Aisle Width : 800 x 1200 Pallet2600 mm
Aisle Width : 1000 x 1200 Pallet2600 mm
Turning Radius1550 mm
Wheels & brakes
Wheelbase1200 mm
Wheel TypeSolid Wheels
Tyre Size, DriveØ 300 x 100 mm
Tyre Size, LoadØ 406 x 115 mm
Qty of Wheels1x+2
Wheel Track, Load1422 mm
Wheelbase Center Ground Clearance100 mm
Steering TypeMechanical Steering
Power & battery
Driving Motor1.8 kW
Lifting Motor2.2 kW
Battery2x12/85 V/Ah
ChargerInput AC100-240 V - 50/60 Hz, Output DC24 V
Performance
Max. Driving Speed2.5/2.8 Km/h
Max. Lifting Speed75/100 mm/s
Max. Descending Speed90/75 mm/s
Max. Climbing Gradient10/15 mm/s
Noise Level< 70 dB
Weight
Battery Weight40 kg
Net Weight (With Battery)930 kg
