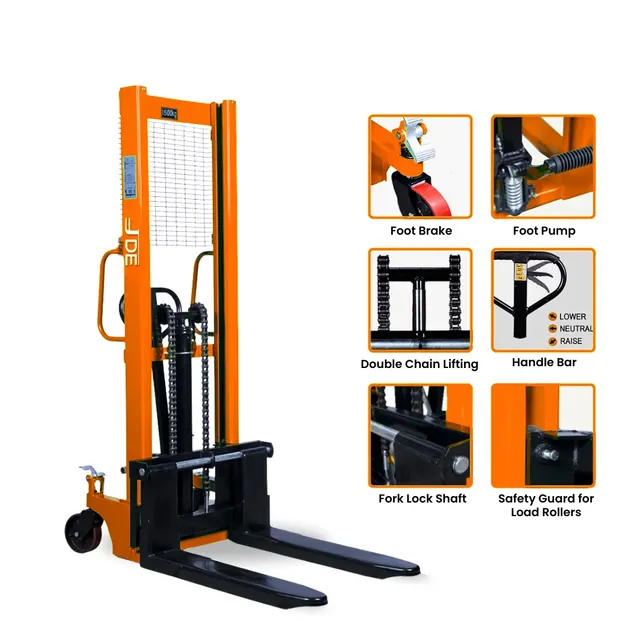

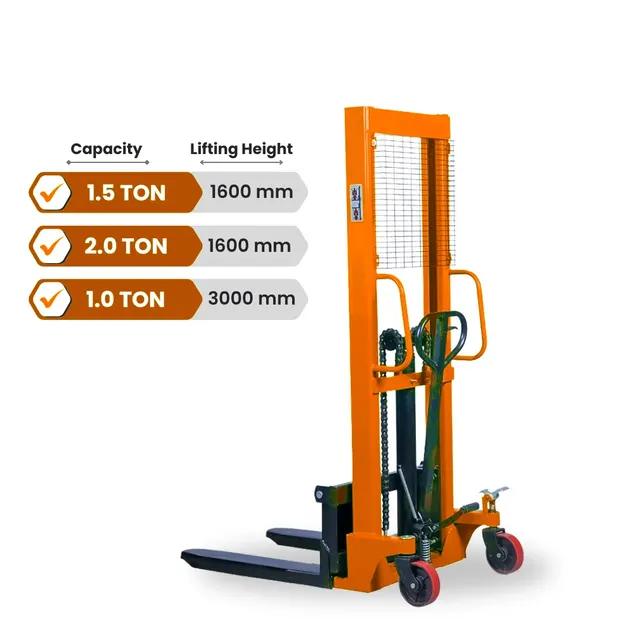

JDE Manual Stacker 1.5 ton With 1.6 m Lift Height JDEMS-1516
Model: JDEMS 1516
Manual Stacker JDEMS 1516 with 1.5 ton capacity and 1.6 m lift height. View specifications and request a quote from JDE.
- Capacity
- 1.5 ton
- Lift height
- 1.6 m
- Power type
- Manual
- Operation type
- Walkie (pedestrian)
Get a quote in 1 minute
Share your phone number and requirement. Our team will call you back with options and a quotation.
Full specifications
| Brand | JDE |
|---|---|
| Type | Manual Stacker |
| Model No. | JDEMS 1516 |
| Pump Finish | Powder Coating |
| Sharp Edges | No |
| Capacity | 1500 kg |
|---|---|
| Overall Raise From Ground | 1600 mm |
| Fork Length | 1150 mm |
|---|---|
| Overall Fork Width | 780 mm |
| Single Fork Width | 160 mm |
| Ground Clearance | 70 mm |
| Turning Radius | 1450 mm |
| Lowered Fork Height | 90 mm |
| Adjustable Width of Forks | 320-750 mm |
| Sheet Thickness | MS / 6 mm |
| Steering Wheel Size | 180 x 50 mm |
|---|
| Lowering Speed | Controllable |
|---|---|
| Lifting Speed (Per Stroke) | 14 mm |
| Weight | 230 kg |
|---|
Features
- It is designed to lift and transport pallets and is ideal for unloading trucks in facilities without loading docks
- It is robust construction and used to lift heavy materials
- Designed for ease of use, the safe and efficient movement of goods with very little effort
- Heavy duty and reinforced forks for the greatest strength and durability
Description
It is designed to lift and transport pallets and is ideal for unloading trucks in facilities without loading docks.
It is robust construction and used to lift heavy materials.
Designed for ease of use, the safe and efficient movement of goods with very little effort.
Heavy duty and reinforced forks for the greatest strength and durability.
JDE Hydraulic Manual Stacker 1 ton JDEMS-1516 has a fork length of 1150 mm and a mast height of >1900 mm.
It has a maximum lifting height of 1600 mm and a load center of 500 mm.
Its minimum fork height is 90 mm, and it has a single fork width of 160 mm.
The turning radius of the manual stacker is 1450 mm, and a cylinder stroke is 800 mm.
The load capacity of Manual Stacker is 1500 kg.
