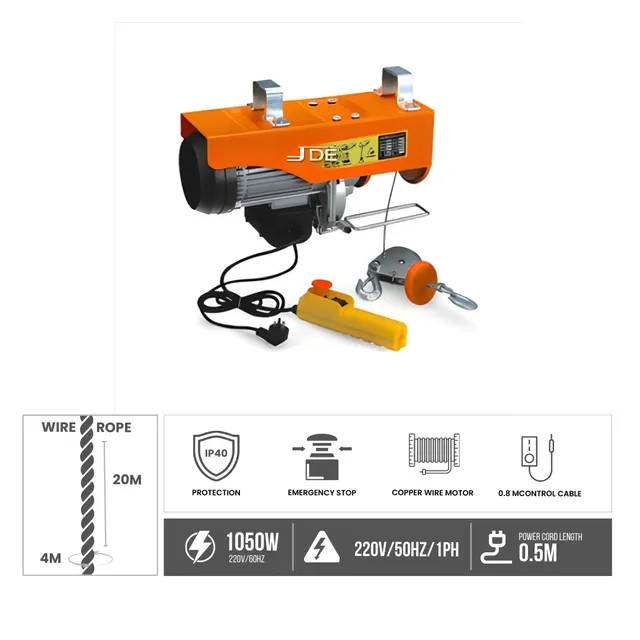

JDE Mini Electric Hoist 500 kg JDEMEH-500
Model: JDEMEH-500
Electric Hoist JDEMEH-500 with 500 kg capacity and 20 m lift height. View specifications and request a quote from JDE.
- Capacity
- 500 kg
- Lift height
- 20 m
- Power type
- Fully electric
Get a quote in 1 minute
Share your phone number and requirement. Our team will call you back with options and a quotation.
Full specifications
| Brand | JDE |
|---|---|
| Type | Electric Hoist |
| Model No. | JDEMEH-500 |
| Protection | IP40 |
| Emergency Stop | Yes |
| Single Line Lifting Capacity | 250 kg (Actual Max. 150 kg) |
|---|---|
| Double Line Lifting Capacity | 500 kg (Actual Max. 300 kg) |
| Single Line Lifting Height | 20 m |
| Double Line Lifting Height | 10 m |
| Wire Rope Length | 20 m |
|---|---|
| Wire Rope Diameter | 4.0 mm |
| Controlling Cable Length | 0.8 m |
| Motor | Copper Wire Motor |
|---|---|
| Power | 1050 W, 220 V/60 Hz |
| Power Cord Length | 0.5 m |
| Voltage | 220 V/50 Hz/1PH |
| Single Line Lifting Speed | 10 m/Min |
|---|---|
| Double Line Lifting Speed | 5 m/Min |
