JDE Fully Electric Stacker 2 ton 3.0 m Lifting Height JDEFES-30R

Model: JDEFES-30R

Fully Electric Stacker JDEFES-30R with 2 ton capacity and 3 m lift height. View specifications and request a quote from JDE.

Capacity
2 ton
Lift height
3 m
Power type
Fully electric
Operation type
Rider
Request a Quote Call WhatsApp

Full specifications

General
BrandJDE
TypeFully Electric Stacker
Model No.JDEFES-30R
Operate TypeStand Up
Axle Loading, Laden Driving / Load830 / 1535 kg
Axle Loading, Unladen Driving / Load663 / 202 kg
Max. Grade AbilityLoad 5% / Unload 10%
Capacity & lift
Capacity2000 kg
Load Center Distance500 mm
Lift Height3000 mm
Dimensions
Load Distance, Center of Drive Axle to Fork700 mm
Min. Height85 mm
Total Width820 mm
Handle Height During OperationMax. 1100 mm / Min. 1360 mm
Total Body Length717 mm
Ground Clearance25 mm
Total Length1867 mm
Fork Dimensions60 x 180 x 1150 mm
Fork Width690 mm
Turning Radius1487 mm
Wheels & brakes
Wheel Base1232 mm
Wheel TypePolyurethane (PU)
Driving Wheel230 x 70 mm
Load Wheel70 x 80 mm
Driving Wheel Base557 mm
Load Wheel Base410 / 525 mm
Brake TypeElectromagnetic
Power & battery
PowerBattery
Drive Control ModeDC Speed Control
Traction Motor1.3 kW
Lift Motor2.2 kW
Battery Volts / Amp4 x 12 V / 85 Ah
Performance
Traction SpeedLoad 4.0 km/h / Unload 4.2 km/h
Lifting SpeedLoad 68 mm/s / Unload 162 mm/s
Noise70dB
Weight
Battery Weight2 x 34 kg

Features

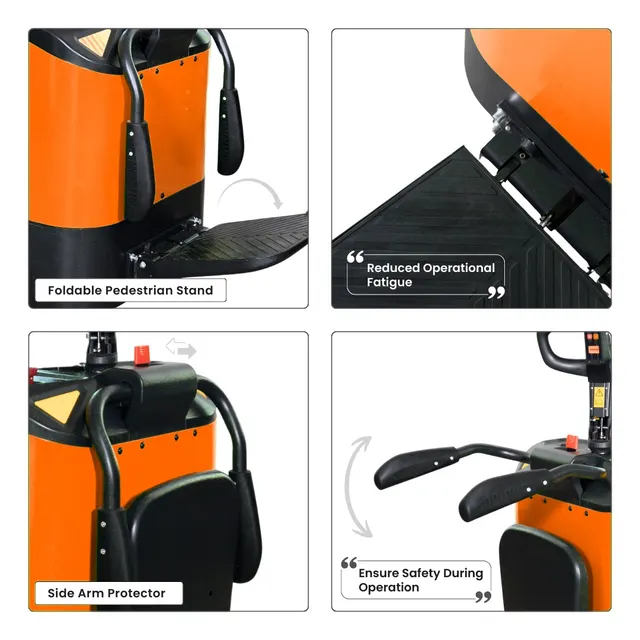

  • Compact dimensions and adjustable handle height enhance operator comfort and control

Description

JDE Fully Electric Stacker 2 ton JDEFES-30R offers a robust lifting height of 3.0 meters, ideal for efficient warehouse operations.

Featuring a 2.0-ton load capacity with a load center distance of 600 mm, it ensures stable handling.

Its polyurethane wheels provide durability and smooth movement, supported by a wheelbase of 1232 mm and a turning radius of 1487 mm for excellent maneuverability.

With a traction speed up to 1.3 km/h unloaded and a lifting speed of 162 mm/s unloaded, this stacker balances speed and precision.

Compact dimensions and adjustable handle height enhance operator comfort and control.
